MUT For Torque v1

send link to app

MUT For Torque v1



5.04 usd

**[Update]- This edition of the plugin MUT For Torque v1 is now considered a legacy edition- A completely revamped edition of the plugin is released as MUT For Torque v2 whereby it supports CANBUS Mode 23 and CANBUS Mode 21 SST PIDs and extended sub-pids such as fuel consumption and injector duty cycles for Hybrid MUT Over ISO9142-2- The revamped MUT For Torque v2 features a faster logging rate (dependent on amount of PIDs enabled through the plugin) with a standalone CSV logger and retains an option of "Legacy Mode" where it functions similarly to MUT For Torque v1.
MUT For Torque v2 Playstore Link : https://play.google.com/store/apps/details?id=com.xkaixrezza.mutiiv2&hl=en
**IMPORTANT FOR BOTH MUT FOR TORQUE V1 & MUT FOR TORQUE V2, TORQUE MUST BE ABLE TO CONNECT AND INTERFACE WITH THE ECU AS THE PLUGIN DOES NOT ADD FUNCTIONALITY TO CONNECT TO A MUT PROTOCOL ONLY ECU**
**IMPORTANT BEFORE PURCHASING, THIS PLUGIN REQUIRES YOUR VEHICLE TO BE COMPATIBLE WITH ISO9142-2 AND DOES NOT SUPPORT MITSUBUSHIS ON OTHER ISO PROTOCOLS**
*Note : This Plugin requires Torque Pro and a limited number of ECUs only.
*Additional note : If your facing a "Unable to create importable file error, please go to settings, unmount and remount your SD Card.
Monitor specific Mitsubushi MUT requested parameters in real-time, including advanced sensor data ie, Knockcount by adding this plugin to Torque Pro.
MUT FOR TORQUE s a plugin for Torque Pro, extending the PID/Sensor list with a number specific parameters from Mitsubushi vehicles on the MUT protocol, including:* Knocksum* Various fuel trims (low, mid, high)* ECU Calculated Load* Airflow In Hz* Octane Level* EGR Temperatures
*PLEASE NOTE* Note not all PID(s) are supported on all OBDII Supported Mitsubushi Models/ECU(s) depending on Sensor availability and such, the plugin was tested only on the following models/engines :* Mitsubushi Colt Ralliart Version-R MT (Z27AG)
KNOWN INCOMPATIBLE VEHICLES- Lancer [Evolution X Styling] (2007+)- Mitsubishi Lancer Evolution X (All Models)- Mitsubishi Lancer Evolution 1, 2, 3- Mitsubishi ASX (2010)- Mitsubishi Canter (2003)- Mitsubishi Carisma Diesel (2001)- Mitsubishi Colt 1.3L Petrol / Diesel (2006+)- Mitsubishi Colt Z30 (2006)- Mitsubishi Grandis (2005)- Mitsubishi L200 (2006)- Mitsubishi Outlander (2011)- Mitsubishi Outlander Instyle (2008)- Mitsubishi Pajero (All Models)- Mitsubishi Space Star Diesel (2001)
-IMPORTANT- The plugin does not currently support the Evo X, Lancer EX/Fortis, OBDI ECU Models nor models which require mode 23.
This is *NOT* a standalone application and will *NOT* work without Torque Pro.

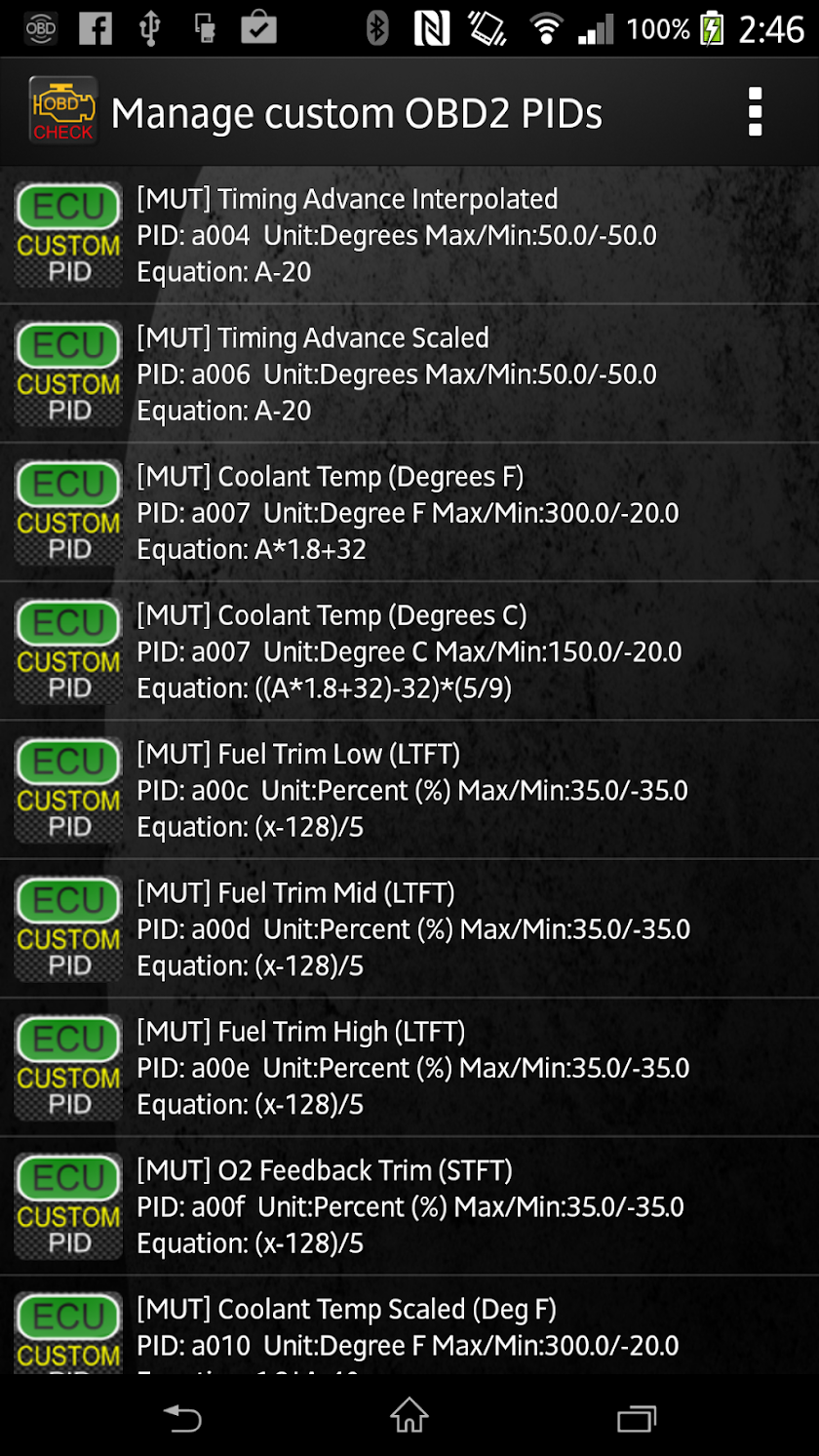

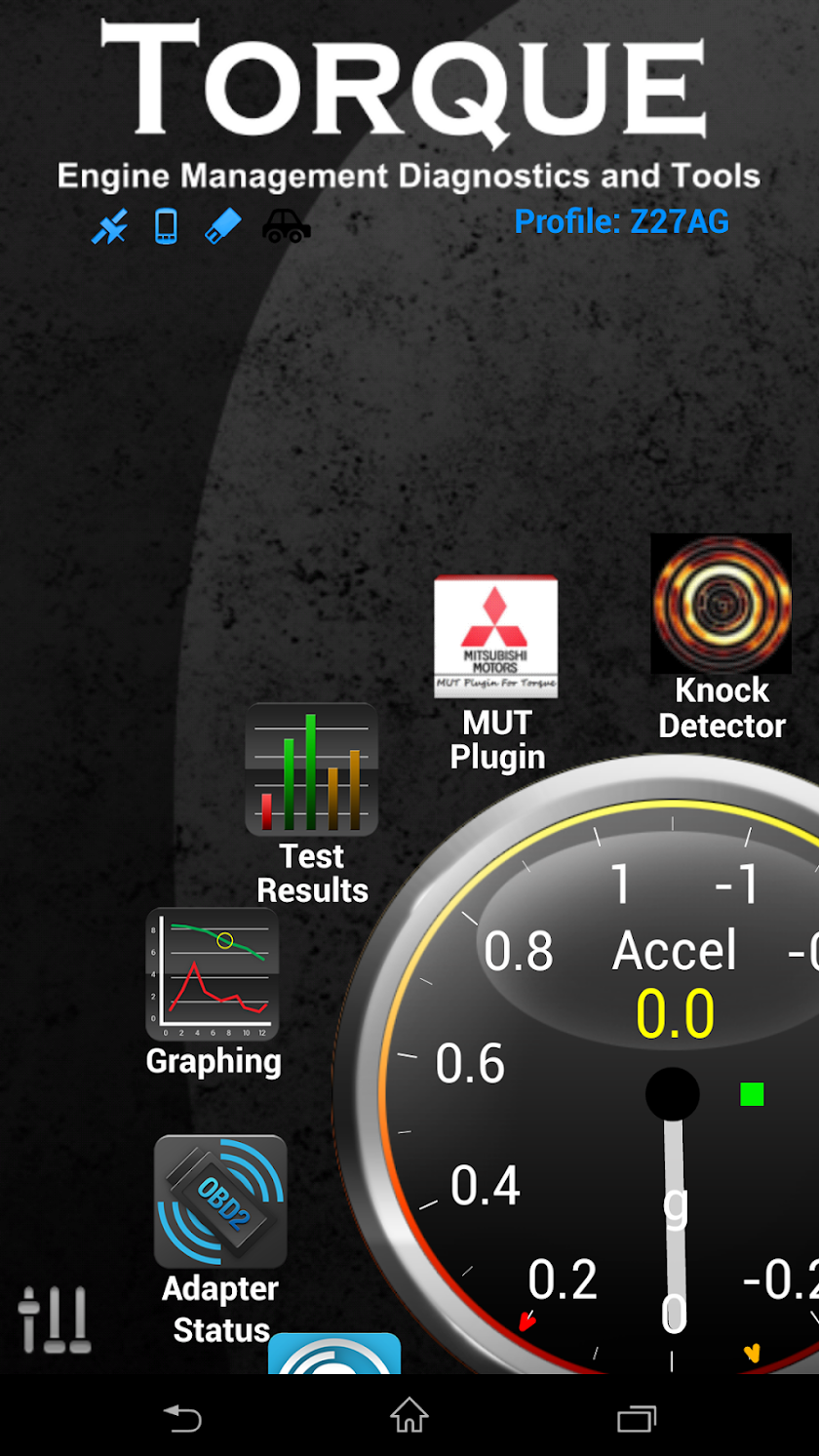

Plugin Installation-------------------------1) After purchasing the plugin on Google Play, make sure that you see the plugin listed on your Android device installed applications list.2) Launch Torque Pro and click on the "MUT Plugin" icon3) Select "MUT II (Non-CAN)" and return to Torque Pro main screen4) Go to Torque Pro "Settings"5) Scroll down to "Manage extra PIDs/Sensors"6) Usually this screen will not display any entries, unless you have added any pre-defined or custom PIDs in the past.7) From the menu, choose "Add predefined set" and select from the list "MUT Import"8) After clicking on the entry from the previous step, you should see several entries added to the Extra PIDs/Sensors list.
Adding Displays------------------------1) After adding the additional sensors, go to the Realtime Information/Dashboard.2) Press the menu key and then click on "Add Display"3) Select the appropriate display type4) Select the appropriate sensor from the list. The PID(s) added through this plugin would have a [MUT] prefix with the sensor/PID name and should appear on the top of the list.
